特點

1. 接收國際標準DMX512信號，單通道最大1.5A恒流輸出。

2. 超寬直流供電范圍，DC9-60V，效率高達90%以上，可串1-12顆大功率LED。

3. 0-100%調(diào)光輸出，可達65535級灰度。

4. 超小型、工業(yè)級設(shè)計，抗干擾能力超強。

5. 支持在線自動寫址，并可查看地址是否成功寫入。支持在線故障查找，方便工程安裝調(diào)試維護。

6. DMX512信號總線采用標準方式，寫址線一進一出級連方式，避免壞掉一個燈，影響后面一串燈正常工作。

Features

1. Receive international standard DMX512 signal, single channel max 1.5A constant current output.

2. Ultra wide DC power supply range, DC9-60V, efficiency of up to 90%, can be strung 1-12 large power LED.

3. 0-100% dimming output, up to 65535 gray level.

4. Ultra small, industrial design, strong anti-interference ability.

5. Support online automatic address, and can view the address is written successfully. Support for online fault detection, easy to install and maintain the project.

6. The DMX512 bus signal using a standard way to write access line into a cascade way, to avoid the bad effects of a lamp, a lamp behind the normal work.

Dimensions: 40(L)*27(W)*12(H)mm

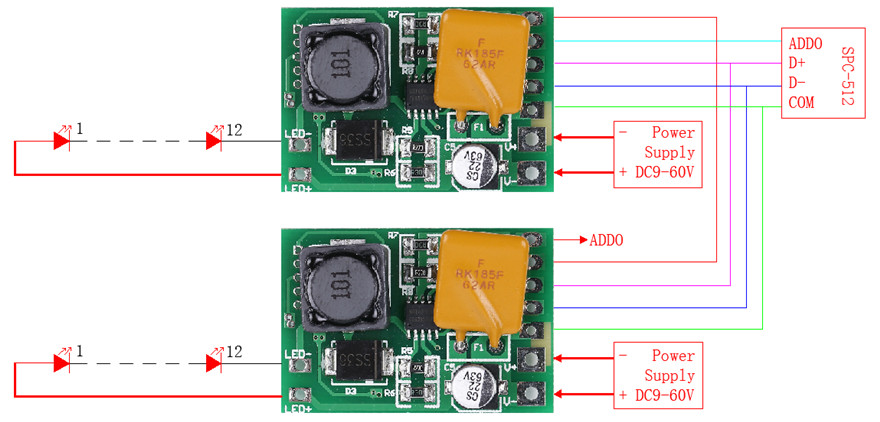

接線圖 Wiring Diagram
