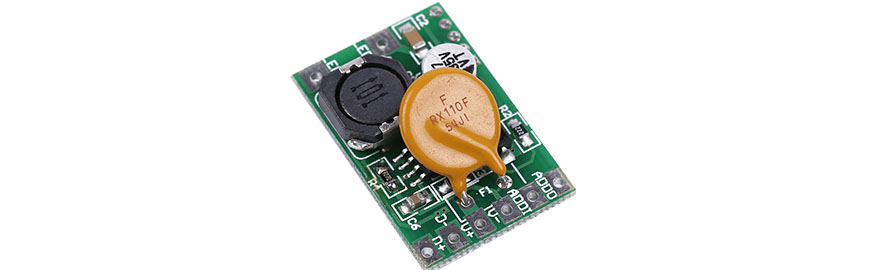

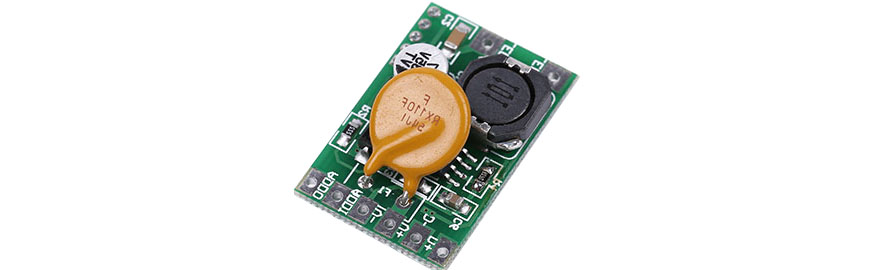

SPD-136
<>
產品概述introduce
產品特點
features
1. 接收國際標準DMX512信號，單通道350/700mA恒流輸出。
2. 超寬直流供電范圍，DC9-30V，效率高達90%以上，可串1-6顆大功率LED。
3. 0-100%調光輸出，可達256級灰度。
4. 超小型、工業級設計，抗干擾能力超強。
5. 支持在線自動寫址，并可查看地址是否成功寫入。支持在線故障查找，方便工程安裝調試維護。
6. DMX512信號總線采用標準方式，寫址線一進一出級連方式，避免壞掉一個燈，影響后面一串燈正常工作。
Features
1. Receive international standard DMX512 signal, single channel 350/700mA constant current output.
2. Ultra wide DC power supply range, DC9-30V, efficiency as high as 90% or more, can be strung 1-6 high-power LED .
3. 0-100% dimming output, up to 256 gray level.
4. Ultra small, industrial design, strong anti-interference ability.
5. Support online automatic address, and can view the address is written successfully. Support for online fault detection, easy to install and maintain the project.
6. The DMX512 bus signal using a standard way to write access line into a cascade way, to avoid the bad effects of a lamp, a lamp behind the normal work.
技術規格
Technical specifications
產品型號：SPD-136
輸入電壓：DC9-30V
輸出功率：最大6W
輸出電流：350/700mA±5%
最大串接LED數量：1*6 LED
數字信號輸入：DMX512
工作溫度：-40℃~+70℃
外型尺寸：30(L)*20(W)*10(H)mm
Technical Specifications
Model: SPD-136
Input Voltage: DC9-30V
Output Power: max 6W
Output Current: 350/700mA±5%
Maximum Number of Tandem LED: 1*6LED
Digital Signal Input: DMX512
Operating Temperature: -40℃~+70℃
Dimensions: 30(L)*20(W)*10(H)mm

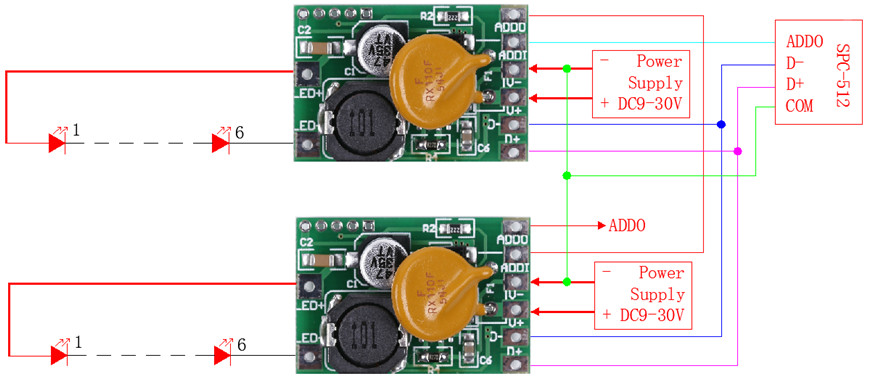

接線圖 Wiring Diagram
