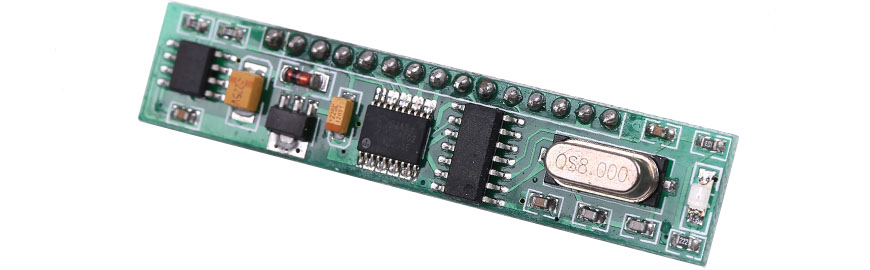

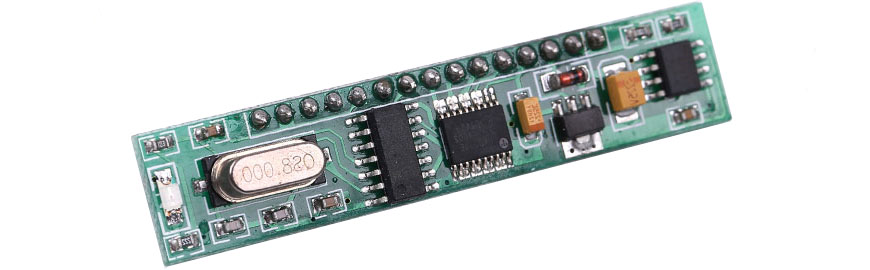

SPC-500B
概述
SPC-500B采用先進的解碼技術，把國際標準的DMX512/1990標準數碼信號轉換成標準的SPI(TTL)數碼信號。輸出控制所有基于74HC595、DM114、DM134、6B595、ZQ9712、MB15026、TB62706等等幾十種類似功能芯片驅動的燈具，每臺可解碼30個通道，可根據需要連接任意臺解碼器。從而使國內絕大部分的數碼LED燈具可以跟國際標準的DMX512協議來接軌，如廣泛使用的點光源、數碼燈管、投光燈、幕墻燈、 像素屏、舞臺地板磚等等各種數碼LED燈具。
Summary
SPC-500B uses advanced decoding technology to convert international standard DMX512/1990 standard digital signals into standard SPI (TTL) digital signals. Output control all drive dozens of similar functions 74HC595, DM114, DM134 chip, 6B595, ZQ9712, MB15026, TB62706 etc. based on the lamps, each of them can decode 30 channels, which can be connected to any of decoders. The vast majority of the lamps so that domestic digital LED can follow the international standard DMX512 protocol standards, such as the widely used digital point light source, lamp, lamp, wall lamp, pixel screen, stage floor tiles and so on all kinds of digital LED lamps.
features
1. 接收國際標準DMX512信號。36通道自適應解碼輸出。
2. 內置穩壓電路,供電范圍從9-30V。
3. 每通道高達256級灰度，支持256*256*256 = 1677萬種顏色變化。
4. 體積業界最小，全貼片制造，工業級設計，抗干擾能力超強。
5. 支持DMX512寫址器設置起始地址。
Features
1. Receive international standard DMX512 signal. 36 channel adaptive decoding output.
2. Built in voltage regulator circuit, power supply range from 9-30V.
3. Each channel up to 256 gray level, support 256*256*256 = 16770 thousand color changes.
4. Volume of the industry's smallest, full chip manufacturing, industrial design, anti-interference ability.
5. Support DMX512 address set to start address.
Technical specifications
技術規格
產品型號：SPC-500B
電源輸入：DC9-30V
輸出通道：36通道自適應
輸出信號: SPI
數字信號輸入/輸出：DMX512
工作溫度：-40℃~+70℃
外型尺寸：60(L)*12(W)*15(H)mm
Technical Specifications
Model: SPC-500B
Input Voltage: DC9-30V
Output Channels: 36 channels self-adaptive
Output Signal: SPI
Digital Signal Input/Output: DMX512
Operating Temperature: -40℃~+70℃
Dimensions: 60(L)*12(W)*15(H) mm

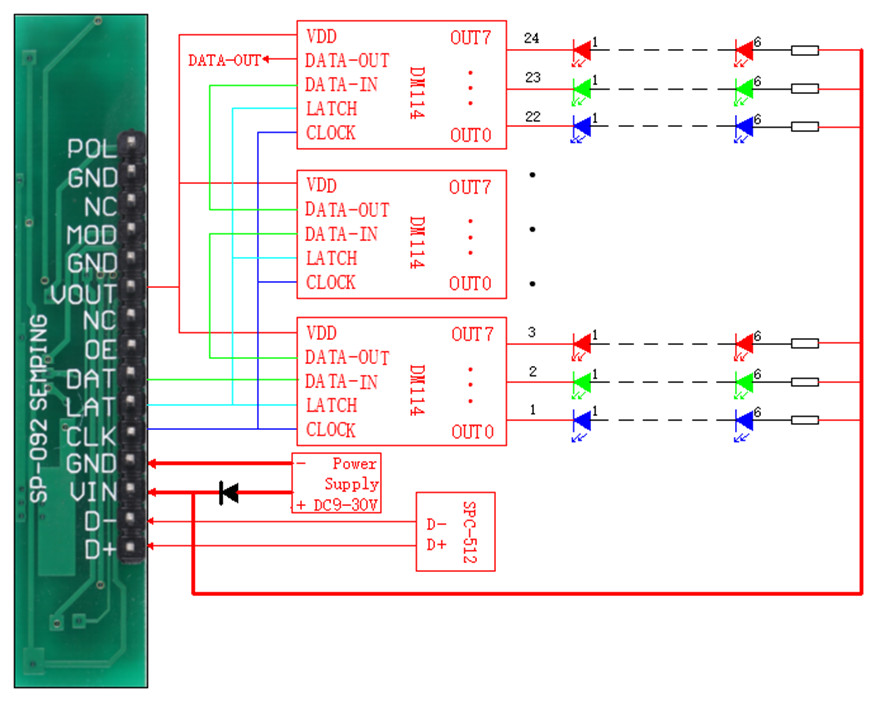

接線圖 Wiring Diagram
