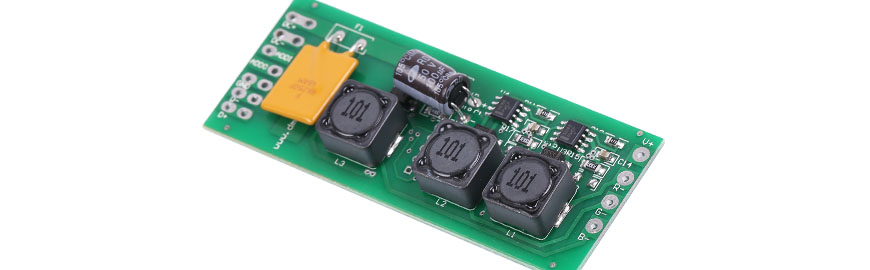

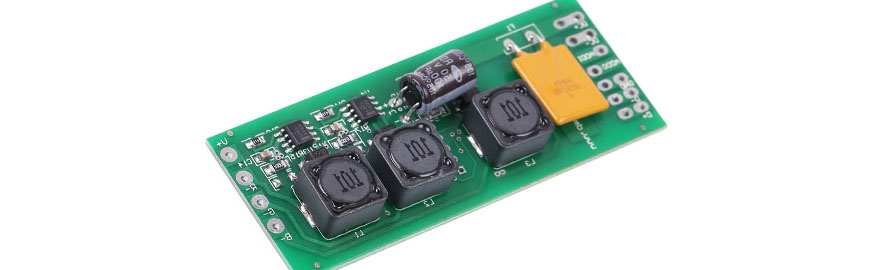

SPD-303C
<>
產品概述introduce
產品特點
features
1. 接收國際標準DMX512信號，每通道最大1A可調整恒流輸出。
2. 超寬直流供電范圍，DC9-40V，效率高達90%以上，可串1-9顆大功率LED，支持共陽輸出。
3. 0-100%調光輸出，可達256級灰度。
4. 超小型、全貼片、工業級設計，抗干擾能力超強。
5. 支持在線自動寫址，并可查看地址是否成功寫入。支持在線故障查找，方便工程安裝調試維護。
6. DMX512信號總線采用標準方式，寫址線一進一出級連方式，避免壞掉一個燈，影響后面一串燈正常工作。
7. 內置自變模式，無DMX512信號入3秒后，自動進入自變模式。
Features
1. Receive the international standard DMX512 signal, the maximum 1A per channel can adjust the constant current output.
2. Ultra wide range of DC power supply, DC9-40V, efficiency up to 90%, 1-9 series high-power LED, support total output.
3. 0-100% dimming output, up to 256 gray level.
4. Ultra small, full chip, industrial design, anti-interference ability.
5. Support online automatic address, and can view the address is written successfully. Support for online fault detection, easy to install and maintain the project.
6. The DMX512 bus signal using a standard way to write access line into a cascade way, to avoid the bad effects of a lamp, a lamp behind the normal work.
7. Built in self - mode, no DMX512 signal into 3 seconds, automatically into the self - change mode.
2. 超寬直流供電范圍，DC9-40V，效率高達90%以上，可串1-9顆大功率LED，支持共陽輸出。
3. 0-100%調光輸出，可達256級灰度。
4. 超小型、全貼片、工業級設計，抗干擾能力超強。
5. 支持在線自動寫址，并可查看地址是否成功寫入。支持在線故障查找，方便工程安裝調試維護。
6. DMX512信號總線采用標準方式，寫址線一進一出級連方式，避免壞掉一個燈，影響后面一串燈正常工作。
7. 內置自變模式，無DMX512信號入3秒后，自動進入自變模式。
Features
1. Receive the international standard DMX512 signal, the maximum 1A per channel can adjust the constant current output.
2. Ultra wide range of DC power supply, DC9-40V, efficiency up to 90%, 1-9 series high-power LED, support total output.
3. 0-100% dimming output, up to 256 gray level.
4. Ultra small, full chip, industrial design, anti-interference ability.
5. Support online automatic address, and can view the address is written successfully. Support for online fault detection, easy to install and maintain the project.
6. The DMX512 bus signal using a standard way to write access line into a cascade way, to avoid the bad effects of a lamp, a lamp behind the normal work.
7. Built in self - mode, no DMX512 signal into 3 seconds, automatically into the self - change mode.

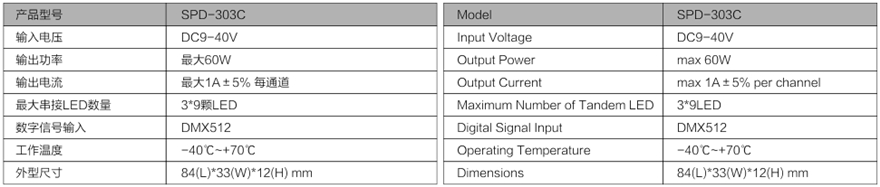

技術規格
Technical specifications

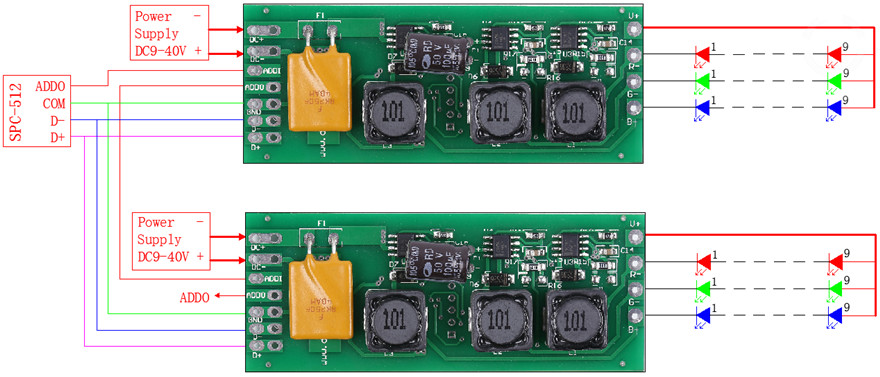

接線圖
