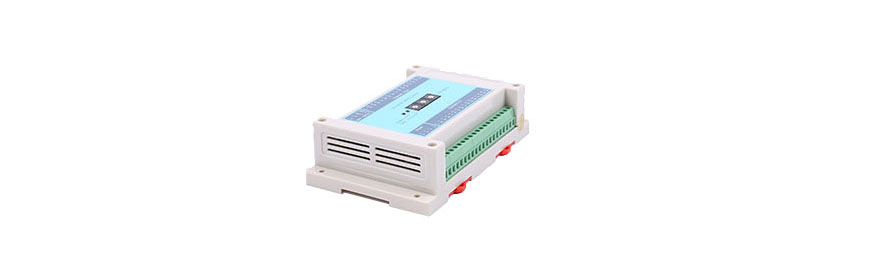

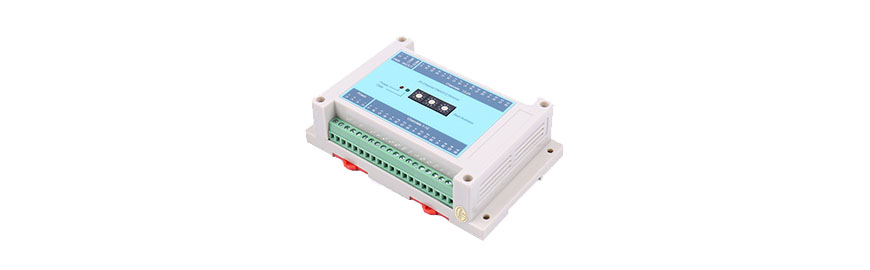

24通道DMX512調光器
<>
產品概述introduce
產品特點
features
1. 接收國際標準DMX512信號。24通道輸出，每通道輸出電流最高可達1安培。可控制8個全彩RGB象素點。
2. 國內首創采用旋轉開關設置DMX512起始地址，避免以往采用二進制撥碼方式設置DMX512起始地址所帶來的換算困難，容易錯撥，識別困難等一系列弊端。
3. DMX512寫址器設置起始地址和旋轉開關設置起始地址任意選擇。
4. 每通道高達256級灰度，支持256*256*256 = 1677萬種顏色變化。
Features
1. Compatible with the international standard DMX512 signal, 24 output channels, output current up to 1A per channel. Each channel can control 8 full-color RGB pixel points.
2. The rotating switch is used to set the starting address of DMX512 in our country, so as to avoid a series of drawbacks, such as conversion difficulty caused by setting up the DMX512 initial address in the former way, easy to make mistake and difficult to recognize .
3. Set the start address by either DMX512 Address Writer or rotary switch.
4. Each channel reaches up to 265 gray scale levels, supporting 16,770,000 different kinds of colors.
2. 國內首創采用旋轉開關設置DMX512起始地址，避免以往采用二進制撥碼方式設置DMX512起始地址所帶來的換算困難，容易錯撥，識別困難等一系列弊端。
3. DMX512寫址器設置起始地址和旋轉開關設置起始地址任意選擇。
4. 每通道高達256級灰度，支持256*256*256 = 1677萬種顏色變化。
Features
1. Compatible with the international standard DMX512 signal, 24 output channels, output current up to 1A per channel. Each channel can control 8 full-color RGB pixel points.
2. The rotating switch is used to set the starting address of DMX512 in our country, so as to avoid a series of drawbacks, such as conversion difficulty caused by setting up the DMX512 initial address in the former way, easy to make mistake and difficult to recognize .
3. Set the start address by either DMX512 Address Writer or rotary switch.
4. Each channel reaches up to 265 gray scale levels, supporting 16,770,000 different kinds of colors.
技術規格
Technical specifications
技術規格
產品型號：SPD-241
電源輸入：DC8-28V
輸出功率：最大670W
輸出電流：1A*24通道（沉入式輸出）
輸出頻率：200Hz
數字信號輸入/輸出：DMX512
工作溫度：-20℃~+60℃
防護等級：IP20
外型尺寸：145(L)*90(W)*45(H)mm
重量：0.2kg
認證：CE（EN55022/EN55024/EN61000)
Technical Specifications
Model: SPD-241
Input Voltage: DC8-28V
Output Power: max 670 W
Output Current t: 1A*24 channels (sunk output)
Output Frequency: 200Hz
Digital Signal Input/Output: DMX512
Operating Temperature: -20℃~+60℃
Protection Class: IP20
Dimensions: 145(L)*90(W)*45(H) mm
Weight: 0.2kg
Certifications: CE (EN55022 / EN55024/EN61000)

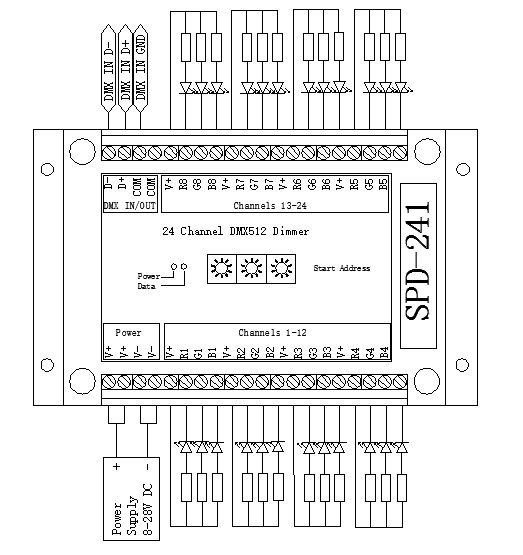

接線圖 Wiring Diagram
