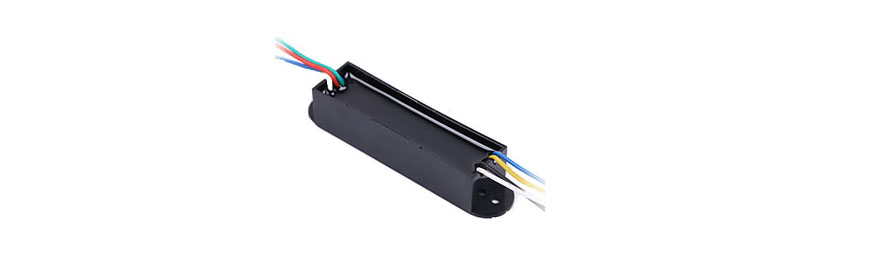

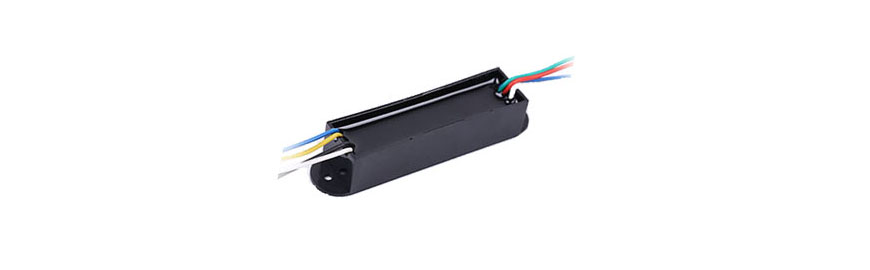

3通道防水型DMX512驅動器
<>
產品概述introduce
SPD-302采用先進的微電腦控制技術，完全符合DMX512/1990標準。可選擇1～3通道輸出，每通道高達256級灰度變化，最大2安培輸出。可廣泛用于城市景觀照明系統的控制與驅動，特別適合于LED燈具的調光。
Summary
SPD-302 using advanced microcomputer control technology, fully in line with DMX512/1990 standards. Can choose 1 ～ 3 channel output, each channel up to 256 gray level change, maximum output of 2 amperes. The utility model can be widely used for the control and drive of the urban landscape lighting system, and is especially suitable for the dimming of the LED lamps.
產品特點
features
1. 接收國際標準DMX512信號，3通道輸出，每通道輸出電流最高可達2安培。
2. 內置穩壓電路,供電范圍從8-28V。
3. 每通道高達256級灰度，支持256*256*256 = 1677萬種顏色變化。
4. 防水型、工業級設計，抗干擾能力超強。
5. 支持DMX512寫址器設置起始地址。
Features
1. Compatible with the international standard DMX512 signal, 3 output channels, output current up to 2A per channel.
2. Built-in constant-voltage circuit, 8V to 28V input voltage range.
3. Each channel reaches up to 265 gray scale levels, supporting 16,770,000 different kinds of colors.
4. Waterproof and industrial grade design, excellent robustness.
5. Support the DMX512 Address Writer to set start address.
2. 內置穩壓電路,供電范圍從8-28V。
3. 每通道高達256級灰度，支持256*256*256 = 1677萬種顏色變化。
4. 防水型、工業級設計，抗干擾能力超強。
5. 支持DMX512寫址器設置起始地址。
Features
1. Compatible with the international standard DMX512 signal, 3 output channels, output current up to 2A per channel.
2. Built-in constant-voltage circuit, 8V to 28V input voltage range.
3. Each channel reaches up to 265 gray scale levels, supporting 16,770,000 different kinds of colors.
4. Waterproof and industrial grade design, excellent robustness.
5. Support the DMX512 Address Writer to set start address.
技術規格
Technical specifications
產品型號：SPD-302
電源輸入：DC8-28V
輸出功率：最大168W
輸出電流：2A*3通道（沉入式輸出）
輸出頻率：200Hz
數字信號輸入/輸出：DMX512
工作溫度：-40℃~+60℃
防護等級：IP65
外型尺寸：103(L)*23(W)*20(H)mm
重量：0.1kg
Technical Specifications
Model: SPD-302
Input Voltage: DC8-28V
Output Power: max 168 W
Output Current: 2A*3 channels (sunk output)
Output Frequency: 200Hz
Digital Signal Input/Output: DMX512
Operating Temperature: -40℃~+60℃
Protection Class: IP65
Size: 103(L)*23(W)*20(H) mm
Weight: 0.1kg
電源輸入：DC8-28V
輸出功率：最大168W
輸出電流：2A*3通道（沉入式輸出）
輸出頻率：200Hz
數字信號輸入/輸出：DMX512
工作溫度：-40℃~+60℃
防護等級：IP65
外型尺寸：103(L)*23(W)*20(H)mm
重量：0.1kg
Technical Specifications
Model: SPD-302
Input Voltage: DC8-28V
Output Power: max 168 W
Output Current: 2A*3 channels (sunk output)
Output Frequency: 200Hz
Digital Signal Input/Output: DMX512
Operating Temperature: -40℃~+60℃
Protection Class: IP65
Size: 103(L)*23(W)*20(H) mm
Weight: 0.1kg

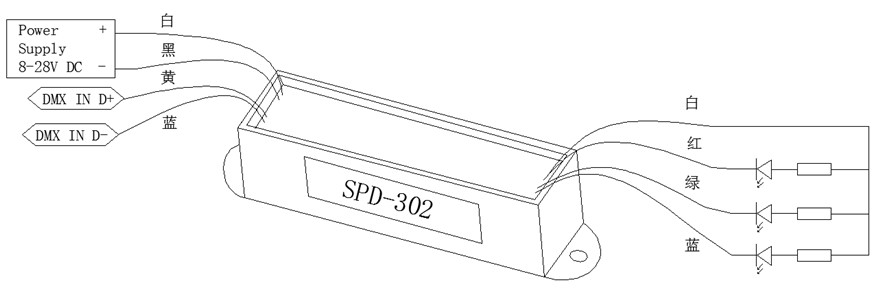

接線圖 Wiring Diagram
