三通道DMX512驅動器
SPD-310采用先進的微電腦控制技術，完全符合DMX512/1990標準。可選擇1～3通道輸出，每通道高達256級灰度變化，最大10安培電流輸出。可廣泛用于城市景觀照明系統的控制與驅動，特別適合于LED燈具的調光。
Summary
SPD-310 using advanced microcomputer control technology, fully in line with DMX512/1990 standards. Can choose 1 ~ 3 channel output, each channel up to 256 gray level change, the maximum output current of 10 amperes. The utility model can be widely used for the control and drive of the urban landscape lighting system, and is especially suitable for the dimming of the LED lamps.
features
2. 國內首創采用旋轉開關設置DMX512起始地址，避免以往采用二進制撥碼方式設置DMX起始地址所帶來的換算困難，容易錯撥，識別困難等一系列弊端。
3. 內建多種測試程序，輕松實現無DMX512主控器時脫機運行。
4. 每通道高達256級灰度，支持256*256*256 = 1677萬種顏色變化。
Features
1. Compatible with the international standard DMX512 signal. 3 output channels,
output current up to 10A per channel.
2. Adopt a rotary switch to set DMX512 start address for the first time in our country, avoiding a series of drawbacks resulted from traditional binary dial-up, namely conversion difficulty, dialing fallibility, identifying problem, etc.
3. Built-in many kinds of testing programs, implementing the offline operation easily without DMX512 main control.
4. Each channel reaches up to 265 gray scale levels, supporting 16,770,000 different kinds of colors.
Technical specifications
技術規格
產品型號：SPD-310
電源輸入：DC8-30V
輸出功率：最大900W
輸出電流：10A*3通道（沉入式輸出）
輸出頻率：100Hz
數字信號輸入/輸出：DMX512
工作溫度：-20℃~+60℃
防護等級：IP20
外型尺寸：115(L)*90(W)*40(H)mm
重量：0.2kg
Technical Specifications
Model: SPD-310
Input Voltage: DC8-30V
Output Power: max 900W
Output Current: 10A*3 channels (sunk output)
Output Frequency: 100Hz
Digital Signal Input/Output: DMX512
Operating Temperature: -20℃~+60℃
Protection Class: IP20
Dimensions: 115(L)*90(W)*40(H) mm
Weight: 0.2kg

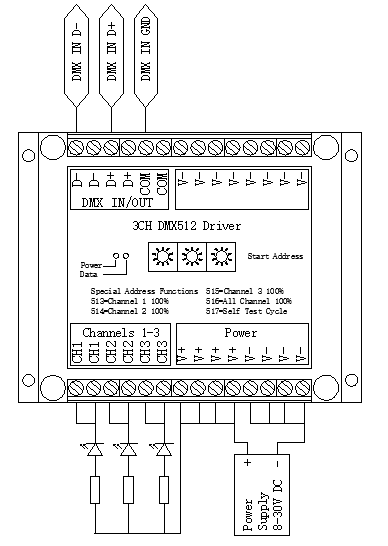

接線圖 Wiring Diagram
