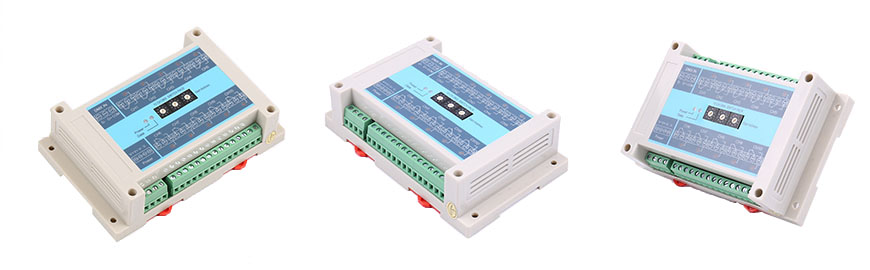

十通道DMX512開關驅動器
<>
產品概述introduce
產品特點
features
1. 接收國際標準DMX512信號。10通道開關輸出,每通道輸出電流高達3安培。
2. 每通道輸出端子均帶LED指示燈、三個接點:常開、常閉、公共干接點,每一個接點電流不超過AC250V/3A 或DC30V/3A。
3. 國內首創采用旋轉開關設置DMX512起始地址,避免以往采用二進制撥碼方式設置DMX512起始地址所帶來的換算困難,容易錯撥,識別困難等一系列弊端。
4. DMX512寫址器設置起始地址和旋轉開關設置起始地址任意選擇。
Features
1. Receive international standard DMX512 signal. 10 channel switch output, each channel output current up to 3 amperes.
2. Each channel output terminals are equipped with LED indicator, three contacts: normally open, normally closed, common dry contact, each contact current is not more than AC250V/3A or DC30V/3A.
3. Domestic first use of rotary switch to set the starting address of the DMX512, to avoid the use of binary code to set the initial address of the DMX512 conversion difficulties, easy to dial, difficult to identify a series of drawbacks.
4. DMX512 address set to start the address and the start of the rotary switch to select any address.
技術規格
Technical specifications
技術規格
產品型號:SPS-103
電源輸入:DC9-40V/AC9~36V
額定功率:最大8W
輸出電流:3A*10通道(干接點輸出)
數字信號輸入/輸出:DMX512
工作溫度:-20℃~+60℃
防護等級:IP20
外型尺寸:145(L)*90(W)*45(H)mm
重量:0.3kg
Technical Specifications
Model: SPS-103
Input Voltage: DC9-40V/AC9~36V
Rated Power: max 8 W
Output Current: 3A*10 channels (dry contact output)
Digital Signal Input/Output: DMX512
Operating Temperature: -20℃~+60℃
Protection Class: IP20
Dimensions: 145(L) * 90(W) * 45(H) mm
Weight: 0.3kg

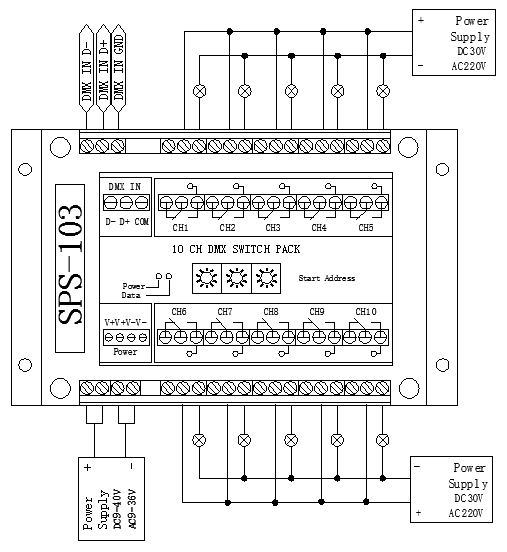

接線圖 Wiring Diagram
