SPC-512
SPC-512 寫碼測試器是本公司針對LED控制系統而特別設計的一款寫址測試器?？蓡蝹€或自動設定DMX512設備起始地址。替代傳統DMX512設備起始地址主要依靠撥碼開關設置的方式。
采用本公司DMX512解碼模塊構成的LED控制系統避免了每個燈都需要撥設地址碼的麻煩。而在實際工程現場中，人工撥設大量地址碼，很容易發生漏撥，多撥，錯撥等錯誤。對工程調試帶來很大的麻煩。而用本公司的地址設定方案可以很好地解決上述問題。您只需要將LED燈具安裝好。然后通過DMX512寫碼器進行相應的操作就可以在數秒內完成對整個系統所有DMX512設備起始地址的設定?？焖?、可靠、準確、方便。
Summary

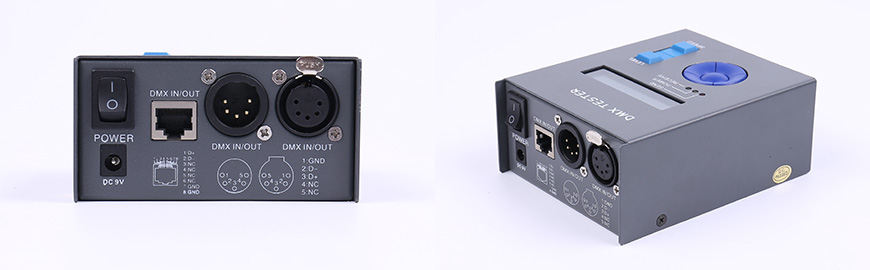

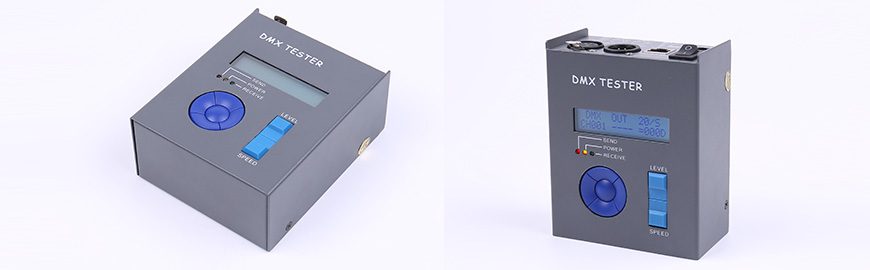

The SPC-512 write code tester is a writing address tester specially designed for the LED control system. You can set the start address of the DMX512 device individually or automatically. Instead of the traditional DMX512 device, the starting address is primarily dependent on the dial switch setting.
The LED control system, which is composed of our DMX512 decoding module, avoids the trouble that each lamp needs to dial the address code. In the actual project site, manually set up a large number of address codes, it is prone to leakage, multi dial, wrong dialing and other errors. It brings great trouble to the debugging of the project. Using the company's address configuration scheme can solve the problem well. All you have to do is install the LED lights. Then through the DMX512 code writer to do the corresponding operation, you can in a few seconds to complete the entire system all the initial address of the DMX512 device settings. Fast, reliable, accurate and convenient.
features
1.外型小巧、重量輕、操作界面人性化，便于工程現場測試。
2.內建電池，超低功耗，可連續工作100小時以上。
3.可單個設置DMX512設備起始地址。（V3.0以上版本支持串行、批量寫址，指定地址更新，讀地址，在線故障檢測功能。V3.3以上版本支持第三方DMX512解碼芯片寫碼）
4.具備發送單通道、多通道DMX512信號功能及支持場景測試模式和淡入淡出郊果。
5.具備接收DMX512信號功能，可顯示DMX512信號的起始碼、刷新速度、通道值等。
Features
1. Small size, light weight, user-friendly operation interface, easy to field testing .
2. Built in battery, ultra low power consumption, can work continuously for more than 100 hours.
3. You can set the start address of the DMX512 device individually.(more than V3.0 supports serial, batch write address, specify address update, read address, online fault detection function. More than V3.3 version supports third party DMX512 decoding chip coding )
4. With send single channel, multi-channel DMX512 signal function and support scene testing mode and fade out suburban fruit.
5. It has the function of receiving DMX512 signal, which can display the starting code, refresh rate, channel value of DMX512 signal, etc.

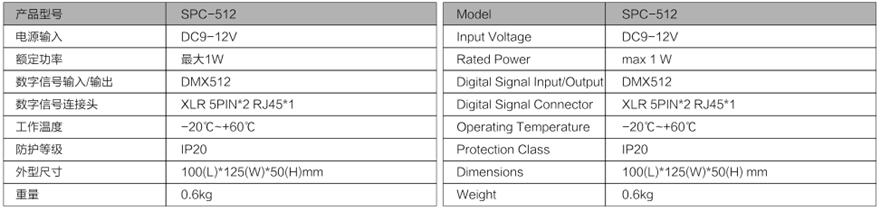

Technical specifications
