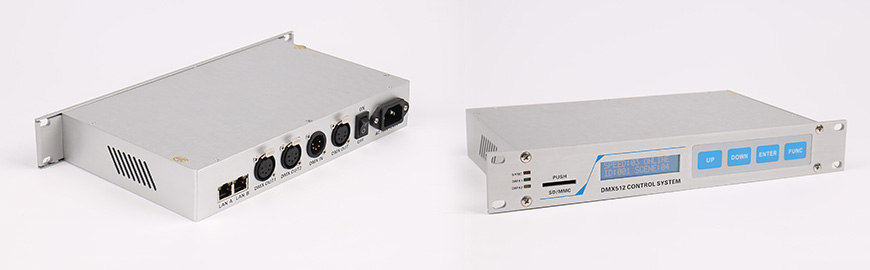

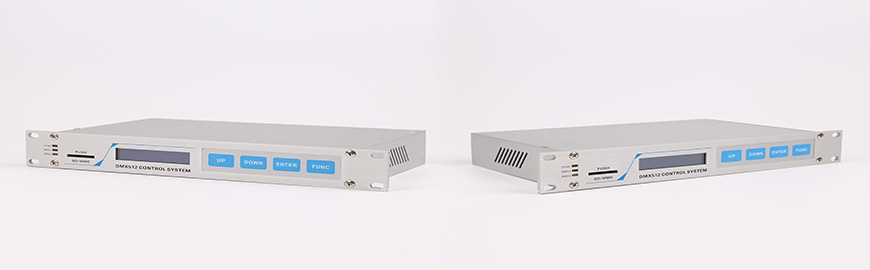

SPC-2000C
SPC-2000C 是本公司針對LED燈飾采用DMX512控制而特別設計的一款DMX512智能燈光控制器。配合功能強大的 DMX-NET系統軟件，實現各種復雜的藝術燈光場景效果。脫機模式下支持多機同步運行。簡化了傳統控制系統的主從式架構，同時擴展了DMX512的輸出通道， SPC-2000C即可以是主機也可以是從機。通過以太網連網，可實現遠程控制。
Summary
SPC-2000C is the company's LED lighting for the use of DMX512 control and specially designed a DMX512 intelligent lighting controller. With powerful DMX-NET system software, to achieve a variety of complex art scene lighting effects. Offline mode supports multi machine synchronous operation. It simplifies the master-slave structure of the traditional control system, and extends the output channel of the DMX512. The SPC-2000C can be either a host or a slave. Through Ethernet networking, remote control can be achieved.
features
2. 藍屏16*2 液晶顯示，友好的人機操作界面。
3. 支持聯機，脫機運行模式，支持2G SD卡或MMC卡存取場景文件。
4．支持254臺控制器通過局域網聯網控制，組成超大規模的LED燈光控制系統，最大可控制超過8萬個全彩像素點。
Features
1. The two group with photoelectric isolation (2500V isolation voltage) the international standard DMX512/1990 signal output, can control 1024 DMX channels, 340 full-color RGB lamps, R, G, B of the 256 gray level, up to 16770 thousand colors, true true color.
2. 16 * 2 LCD blue screen display, user-friendly operation interface.
3. Support online and offline modes, 2G SD card or MMC card to access the scene files.
4. Support 254 controllers’ network through the LAN, composing a super-large-scale LED lighting control system, a maximum of 80,000 full-color pixels can be controlled.

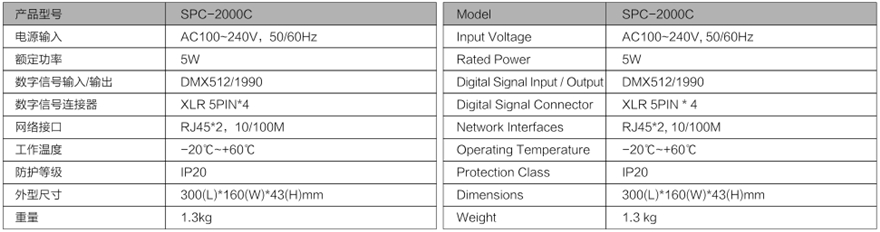

Technical specifications

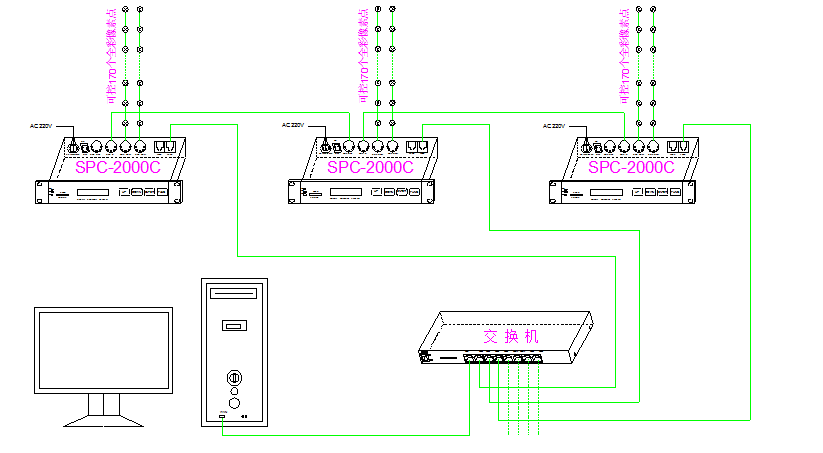

聯機圖

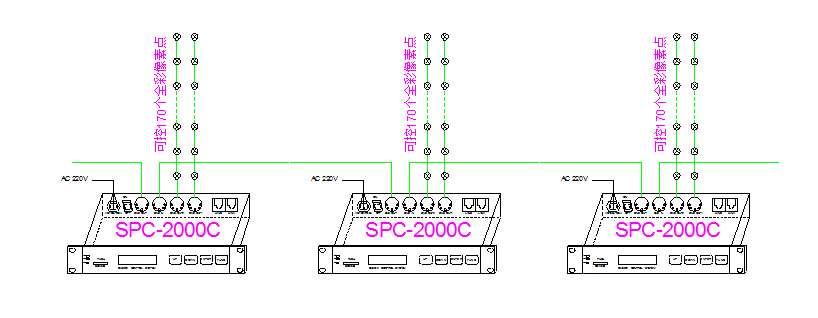

脫機圖
