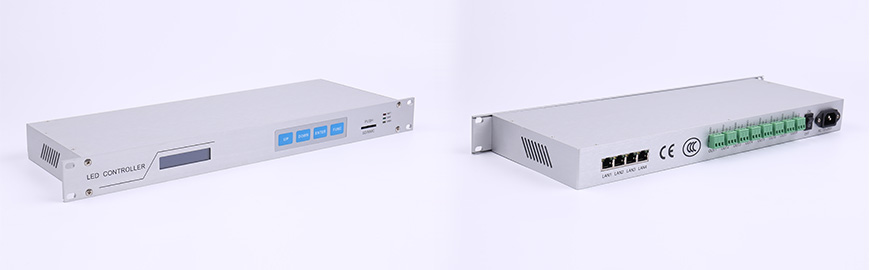

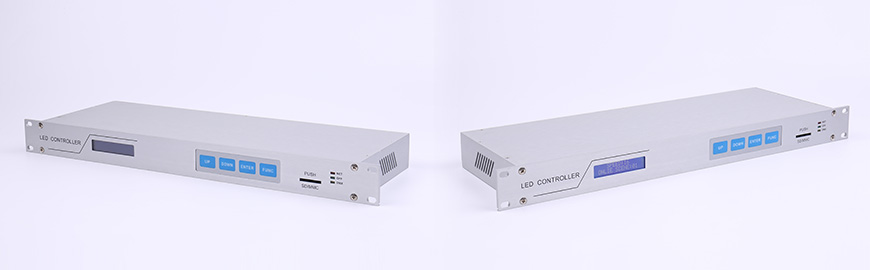

SPC-8000
<>
產品概述introduce
SPC-8000是本公司針對大規模LED控制系統而特別設計的一款控制器。SPC-8000采用32位高速ARM+DSP處理器，使燈光場景的過度更加細膩柔和，系統的穩定可靠性得到充分的保證。配合功能強大的視頻編播軟件DMX-NET ，可控制規則，異形等各種點、線、面光源。同時支持聯機和脫機運行模式。通過以太網連網，可實現遠程控制。
Summary
SPC-8000 is a large scale LED control system designed specifically for the company. SPC-8000 uses 32 bit high speed ARM+DSP processor to make the scene of the lighting more subtle and soft, and the stability and reliability of the system are fully guaranteed. With powerful video editing software DMX-NET, can control the rules, such as special-shaped point, line, surface light source. Both online and offline modes are supported. Through Ethernet networking, remote control can be achieved.
Summary
SPC-8000 is a large scale LED control system designed specifically for the company. SPC-8000 uses 32 bit high speed ARM+DSP processor to make the scene of the lighting more subtle and soft, and the stability and reliability of the system are fully guaranteed. With powerful video editing software DMX-NET, can control the rules, such as special-shaped point, line, surface light source. Both online and offline modes are supported. Through Ethernet networking, remote control can be achieved.
產品特點
features
1. 8組帶光電隔離（2500V隔離電壓）的國際標準DMX512/1990信號輸出，可控 制4096個DMX通道，1360個全彩RGB燈具，R、G、B各256級灰度，高達1677萬種顏色,真正實現真彩色。
2. 藍屏16*2 液晶顯示，友好的人機操作界面。
3. 支持聯機，脫機運行模式，支持2G SD卡或MMC卡存取場景文件。
4. 自帶4個RJ45接口，支持級連和星形連接組網方式。
5．支持254臺控制器通過局域網聯網控制，組成超大規模的LED燈光控制系統，最大可控制30多萬個全彩像素點。
Features
1. The 8 group with photoelectric isolation (2500V isolation voltage) the international standard DMX512/1990 signal output, can control 4096 DMX channels, 1360 full-color RGB lamps, R, G, B of the 256 gray level, up to 16770 thousand colors, true true color.
2. Blue screen 16*2 LCD display, friendly man-machine interface.
3. Support online, offline mode, support 2G SD card or MMC card access scene file.
4. Comes with 4 RJ45 interfaces to support the connection and connection of the network.
5. Support 254 controllers through the LAN network control, composed of large scale LED lighting control system, the maximum control of about 300000 full-color pixels.
2. 藍屏16*2 液晶顯示，友好的人機操作界面。
3. 支持聯機，脫機運行模式，支持2G SD卡或MMC卡存取場景文件。
4. 自帶4個RJ45接口，支持級連和星形連接組網方式。
5．支持254臺控制器通過局域網聯網控制，組成超大規模的LED燈光控制系統，最大可控制30多萬個全彩像素點。
Features
1. The 8 group with photoelectric isolation (2500V isolation voltage) the international standard DMX512/1990 signal output, can control 4096 DMX channels, 1360 full-color RGB lamps, R, G, B of the 256 gray level, up to 16770 thousand colors, true true color.
2. Blue screen 16*2 LCD display, friendly man-machine interface.
3. Support online, offline mode, support 2G SD card or MMC card access scene file.
4. Comes with 4 RJ45 interfaces to support the connection and connection of the network.
5. Support 254 controllers through the LAN network control, composed of large scale LED lighting control system, the maximum control of about 300000 full-color pixels.
技術規格

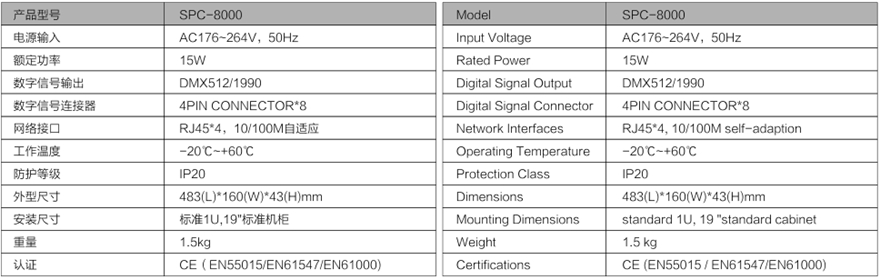

Technical specifications

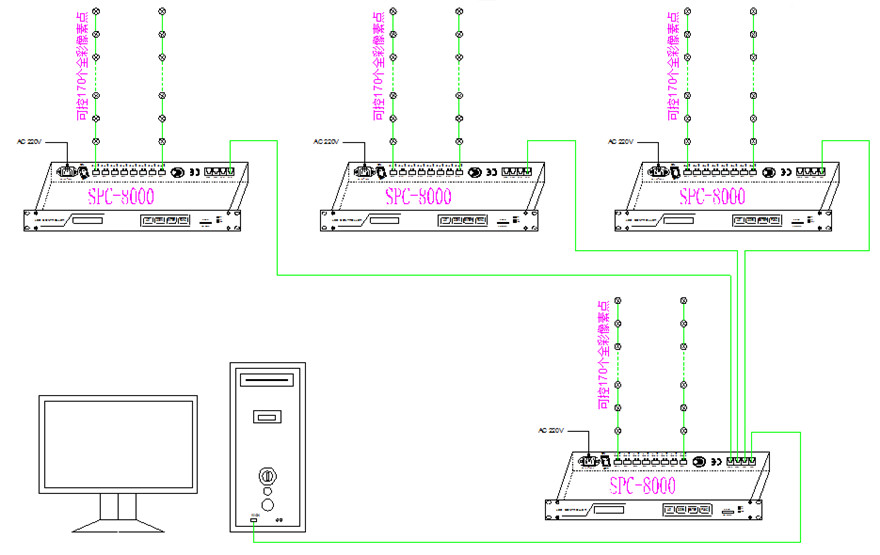

聯機圖
