SPC-8008
<>
產品概述introduce
SPC-8008是本公司針對大規模LED控制系統而特別設計的一款聯機控制器。SPC-8008采用32位高速DSC處理器，使燈光場景的過度更加細膩柔和，系統的穩定可靠性得到充分的保證。配合功能強大的視頻編播軟件DMX-NET ，可控制規則，異形等各種點、線、面光源。
Summary
SPC-8008 is the company for large-scale LED control system and specially designed an online controller. SPC-8008 uses 32 bit high speed DSC processor to make the scene of the lighting more subtle and soft, and the stability and reliability of the system are fully guaranteed. With powerful video codec software DMX-NET, it can control the rules, shapes, and other points, lines, and surface light source.
Summary
SPC-8008 is the company for large-scale LED control system and specially designed an online controller. SPC-8008 uses 32 bit high speed DSC processor to make the scene of the lighting more subtle and soft, and the stability and reliability of the system are fully guaranteed. With powerful video codec software DMX-NET, it can control the rules, shapes, and other points, lines, and surface light source.
產品特點
features
1.支持八路標準DMX512和擴展DMX512輸出，R、G、B各256級灰度，高達1677萬種顏色,真正實現真彩色。
2.支持在線寫址（可對我司的DMX512芯片、模塊在線串行編址），全雙向通信。
3.增強型DMX512輸出，內置抗雷擊及ESD靜電保護電路。
4.16*2 液晶顯示，實時顯示控制器參數，狀態。友好的人機操作界面。
5.采用標準以太網接口和UDP網絡協議，傳輸距離最大為100米。
6.雙網口設計，無需外部交換機，可以實現控制器間級聯。
7.主機直接通過網口和控制器相連，實現聯機控制。
8.EMC電磁兼容設計，具有良好的抗干擾能力。
9.軟件系統的功能高度整合與開放，播放內容和布線的設計可由應用方獨立完成。
Features
1. Support eight standard DMX512 and extended DMX512 output, R, G, B each 256 levels of gray, up to 16770 thousand colors, really realize true color.
2. Support for online address (can be on the division of the DMX512 chip, module online serial addressing), full two-way communication.
3. Enhanced DMX512 output, built-in anti lightning and ESD electrostatic protection circuit.
4. 16*2 liquid crystal display, real-time display controller parameters, status. Friendly man-machine interface.
5. Using standard Ethernet interface and UDP network protocol, the maximum transmission distance of 100 meters
6. Dual port design, no external switches can be achieved between the cascade controller.
7. The host is connected directly to the controller through the network port to realize on-line control.
8. EMC electromagnetic compatibility design, good anti-interference ability.
9. The function of the software system is highly integrated and open, and the design of the content and wiring can be completed independently by the application.
2.支持在線寫址（可對我司的DMX512芯片、模塊在線串行編址），全雙向通信。
3.增強型DMX512輸出，內置抗雷擊及ESD靜電保護電路。
4.16*2 液晶顯示，實時顯示控制器參數，狀態。友好的人機操作界面。
5.采用標準以太網接口和UDP網絡協議，傳輸距離最大為100米。
6.雙網口設計，無需外部交換機，可以實現控制器間級聯。
7.主機直接通過網口和控制器相連，實現聯機控制。
8.EMC電磁兼容設計，具有良好的抗干擾能力。
9.軟件系統的功能高度整合與開放，播放內容和布線的設計可由應用方獨立完成。
Features
1. Support eight standard DMX512 and extended DMX512 output, R, G, B each 256 levels of gray, up to 16770 thousand colors, really realize true color.
2. Support for online address (can be on the division of the DMX512 chip, module online serial addressing), full two-way communication.
3. Enhanced DMX512 output, built-in anti lightning and ESD electrostatic protection circuit.
4. 16*2 liquid crystal display, real-time display controller parameters, status. Friendly man-machine interface.
5. Using standard Ethernet interface and UDP network protocol, the maximum transmission distance of 100 meters
6. Dual port design, no external switches can be achieved between the cascade controller.
7. The host is connected directly to the controller through the network port to realize on-line control.
8. EMC electromagnetic compatibility design, good anti-interference ability.
9. The function of the software system is highly integrated and open, and the design of the content and wiring can be completed independently by the application.

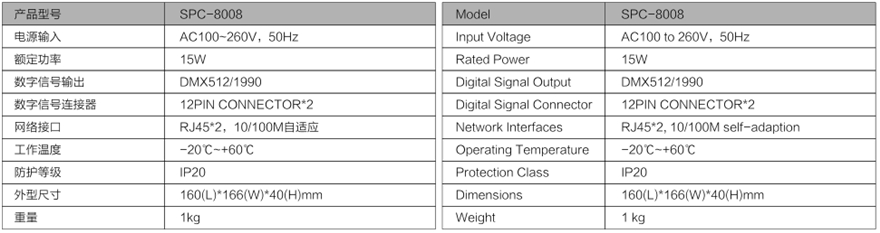

技術規格
Technical specifications

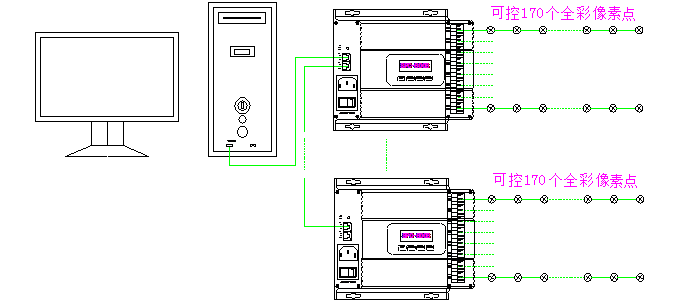

聯機圖

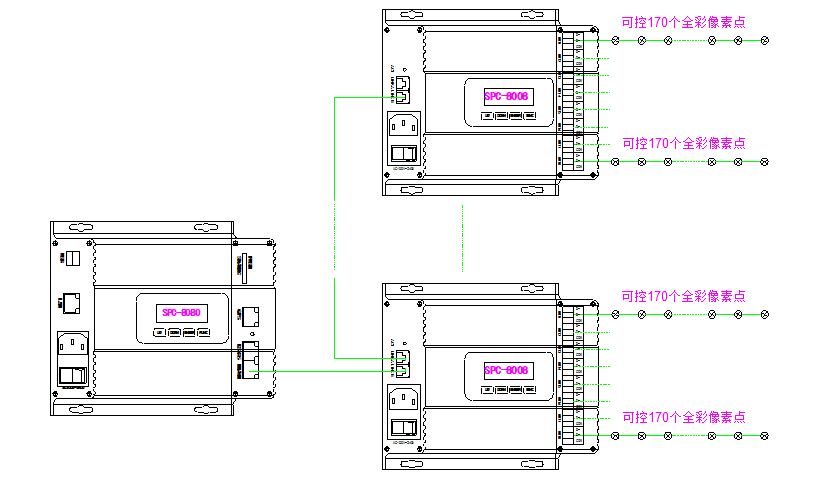

脫機圖
